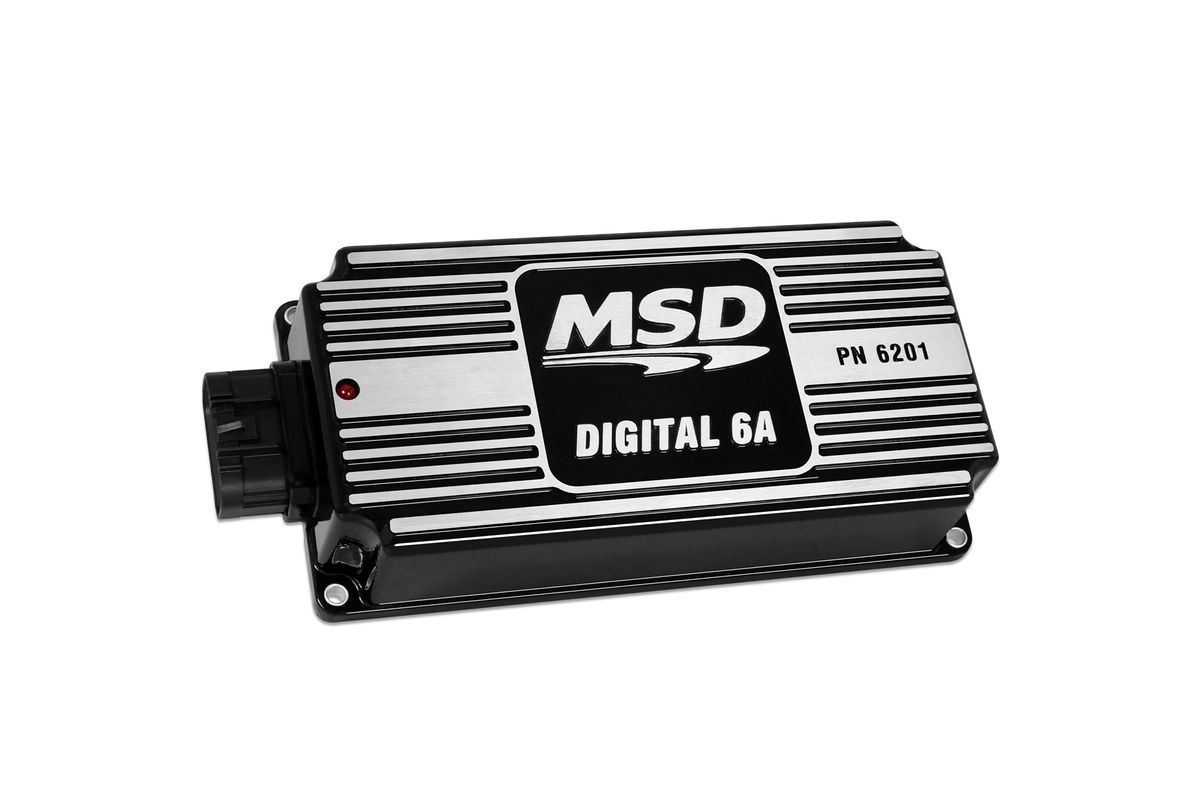

1953-2026 Digital 6A Ignition Control, Black - 62013 - MSD
- Part #UN0594
- Ref Part #62013 ; Mustangs Plus #17341
- CARB Exempt
MSRP $287.99
Sale Price
$249.99
Affirm - Available for US shipments only.
Stock Status:
Available Please allow additional time for delivery. This item requires special handling or may ship directly from our supplier.
Features/Benefits
- If You're Looking To Improve The Performance Of Your Modified Mill, We Have The Answer. Whether You've Done A Cam Swap, Or Bolted On A Carb, Intake And Headers The 6A Is A Surefire Way To Harness All The Ponies Under Your Hood.
- The Digital 6A Is A Microprocessor Controlled, Capacitive Discharge Ignition That Multi Sparks Up To 3, 000 RPM Providing Easy Starts, A Clean, Smooth Idle And Quick Throttle Response By Optimizing Your Engines Efficiency. Above 3, 000 RPM, A Single Spark Stays Lit For Up To 20 Deg Of Crankshaft Rotation Ensuring A Complete Burn Of The Air / Fuel Mixture In Every Cylinder.
- A Sealed, Locking Connector Keeps The Minimal Wiring Of The 6A Tidy For A Clean Installation In All Applications. It Can Be Run On 4, 6 And 8 Cylinder Engines With A 12 Volt Negative Ground Electrical System And Can Be Triggered With Breaker Points, An Electronic Amplifier Or Magnetic Pickups.
- Quick Starts, Smooth Idle, Snappy Throttle Response And Full Power Throughout The RPM Range Are All Benefits Of The MSD 6A.
- Engineered to Meet or Exceed OEM Specifications
- Reference Part Number(s): 62013 ; Mustangs Plus #17341
- Associated Years: 1953-2026
- Item Quantity Size: 1 EA
- Shipping Dimensions (LxWxH): 11in x 8in x 3in
- Weight: 3.3 pounds
- CARB Exempt (Executive Order #D-40-43)
- Tariff Code: 8511906040
- Keywords: Control Modules, Ignition, Ignition Control Module
Additional Details
- Brand - MSD
- C.A.R.B. EO # - D-40-43
- Color - Black
- Current Draw - .7 Amp per 1,000 RPM
- Emission Code - 1
- Features - No Rev Limiter
- Primary Voltage - 520-540 Volts
- Product Type - Digital 6A Ignition Control Box
- RPM Range - 15,000 RPM with 14.4 Volts
- Secondary Voltage - 45,000 Volts
- Spark Energy - 135-145 mJ per spark
- Voltage Required - 12-15 Volts, 7 Volt Start
- Warning - California Proposition 65
- Warranty - Limited 1 Year Warranty
- Weight and Size - 1.7 lbs., 8"L x 4"W x 1.825"H
