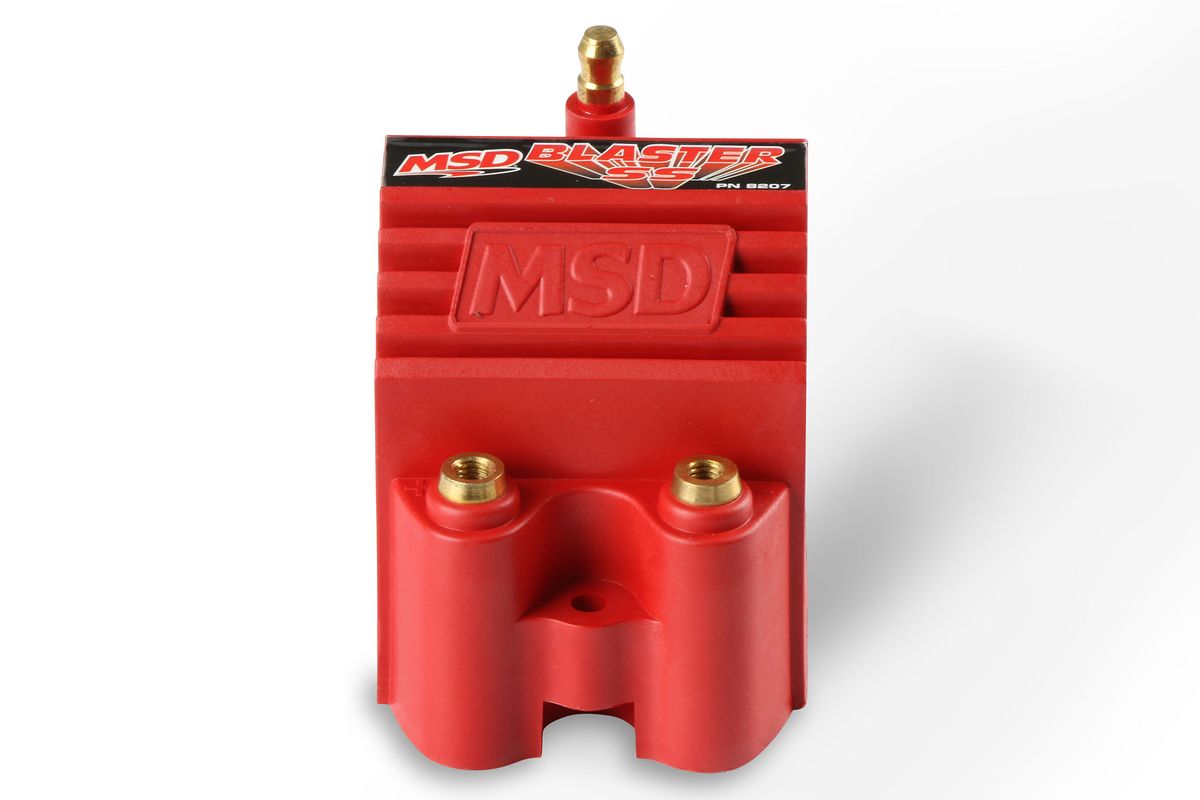

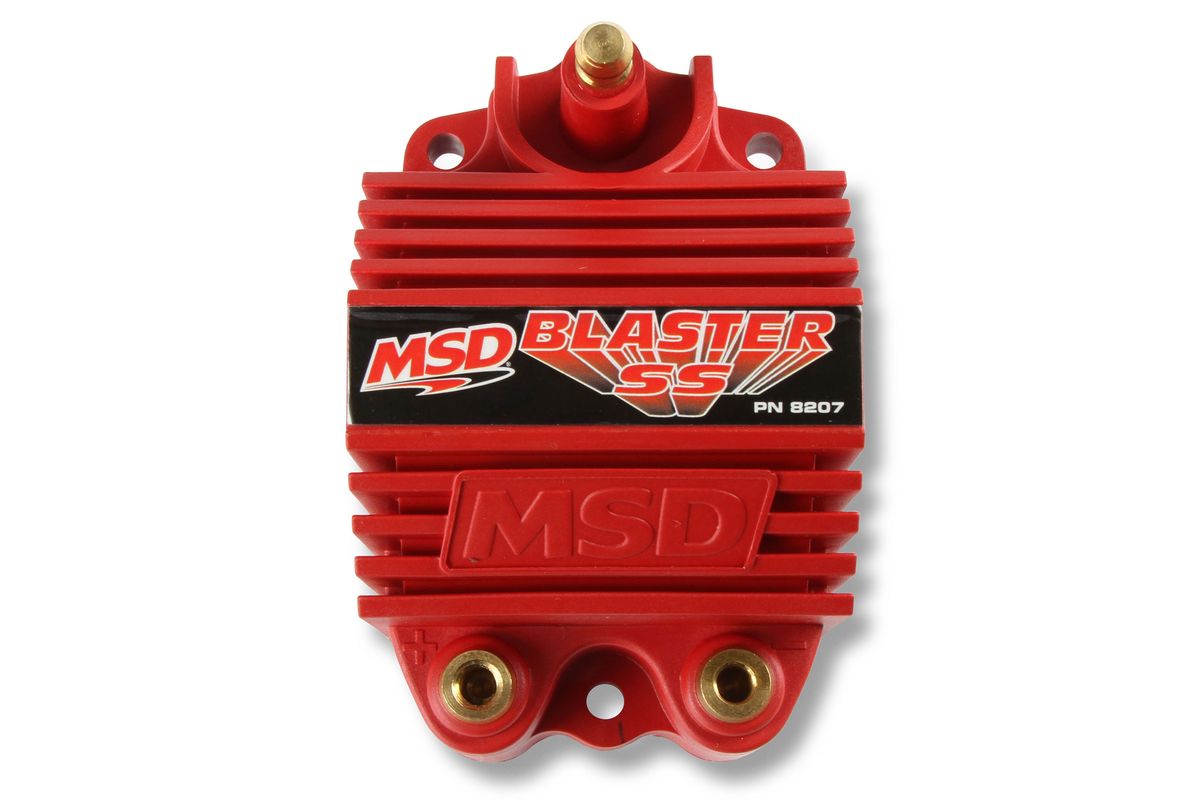

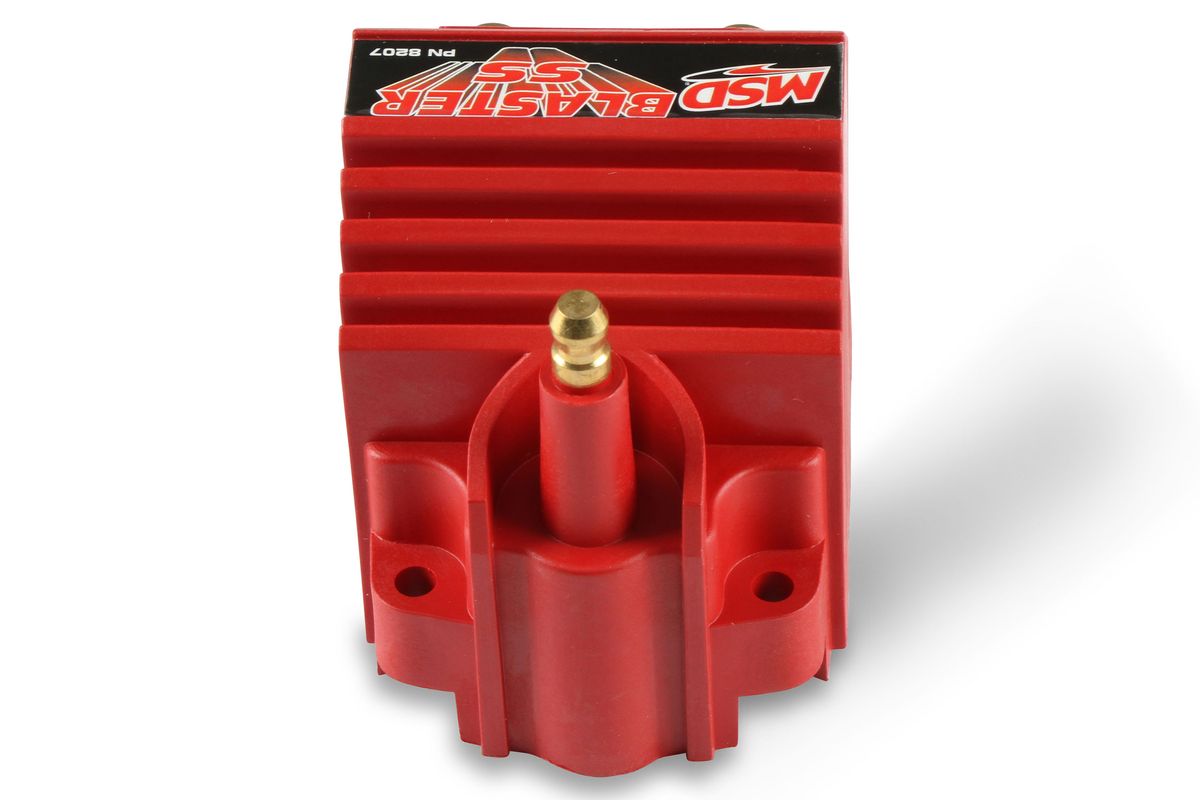

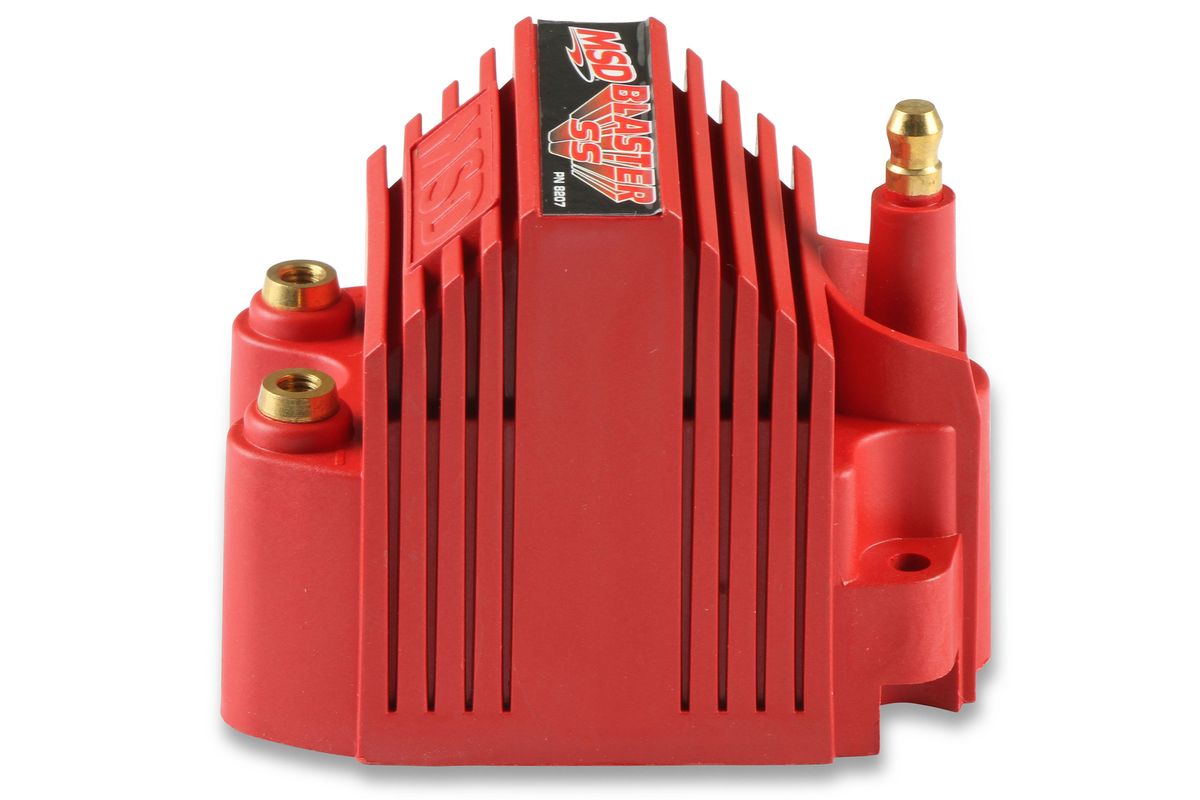

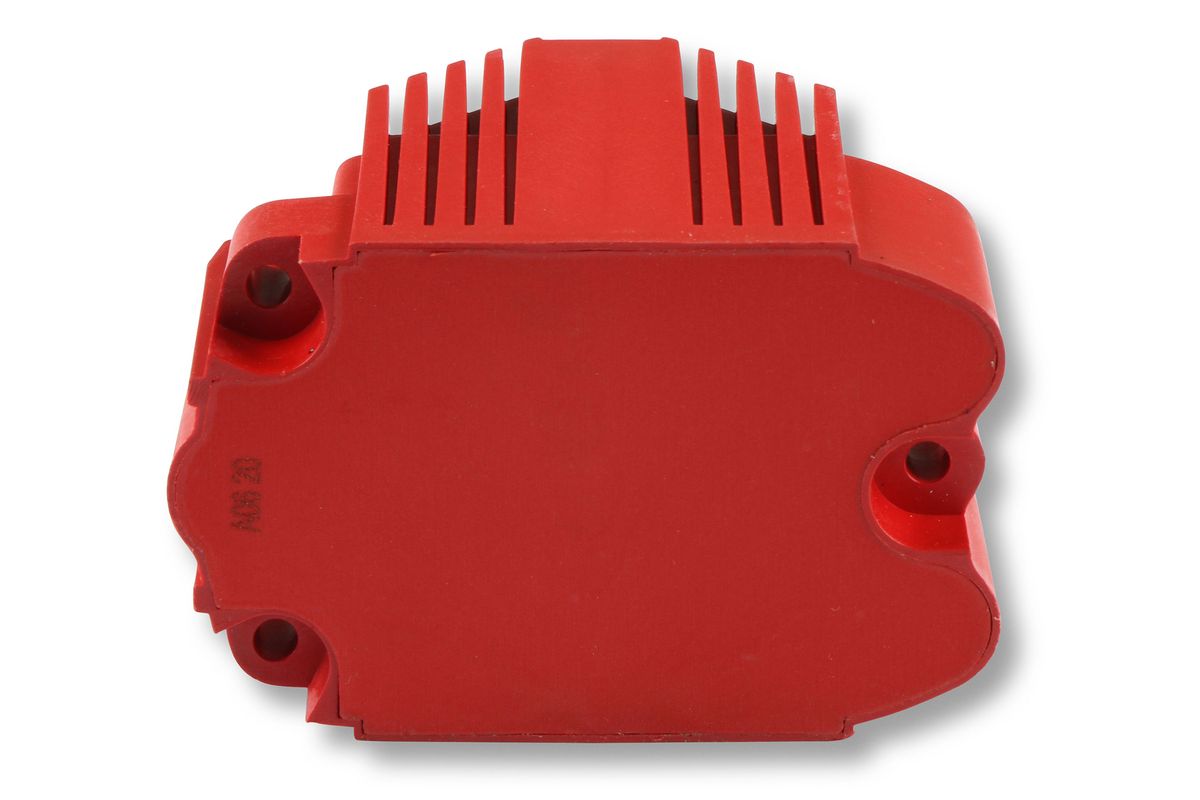

1953-2026 Blaster Ss Series Ignition Coil, Red, 6-Series Ignition - 8207 - MSD
- Part #UN0525
- Ref Part #8207 ; Mustangs Plus #12189
- CARB Exempt
MSRP $88.99
Sale Price
$78.99
Affirm - Available for US shipments only.
Quantity Available: 1
Features/Benefits
- Don't Let The Compact Size Of The Blaster Ss Coil Fool You, Because It Is Packed With Performance! The Efficient E-Core Windings Are Designed To Produce High Amounts Of Current Without Sacrificing The Voltage Output. In Fact, When Used With An MSD 6 Series Ignition, The Blaster Ss Produces 300 Milliamps Of Current And A Maximum Voltage Output Of 40, 000 Volts!
- Compact And Powerful, The Advanced Design Of The Blaster Ss Coil Is A Great Addition To Any MSD 6-Series Ignition.
- Engineered to Meet or Exceed OEM Specifications
- Reference Part Number(s): 8207 ; Mustangs Plus #12189
- Associated Years: 1953-2026
- Item Quantity Size: 1 EA
- Shipping Dimensions (LxWxH): 6in x 10in x 4in
- Weight: 1.4 pounds
- CARB Exempt (Executive Order #D-40-37)
- Tariff Code: 8511300080
- Keywords: Engine Parts, Ignition, Ignition Coil
Additional Details
- Brand - MSD
- C.A.R.B. EO # - D-40-37
- Coil Type - Blaster
- Color - Red
- Emission Code - 1
- Inductance - 6.9 mH
- Peak Current - 300 mA
- Primary Resistance - .355 OHMs
- Product Type - Coil
- Secondary Resistance - 4.4K OHMs
- Spark duration - 220 uS
- Turns Ratio - 70:1
- Warning - California Proposition 65
- Warranty - Limited 1 Year Warranty
- Weight - 1.08 lbs.
- Shop All Retail Parts & Accessories
- Shop All Wholesale Parts & Accessories
- Fits Year: 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
- Fits Generation: C1 Corvette, C2 Corvette, C3 Corvette, C4 Corvette, C5 Corvette, C6 Corvette, C7 Corvette, C8 Corvette, First Generation Mustang, First Generation Camaro, First Generation Chevelle, First Generation Challenger, First Generation Charger, Second Generation Mustang, Second Generation Camaro, Second Generation Chevelle, Second Generation Challenger, Second Generation Charger, Third Generation Mustang, Third Generation Camaro, Third Generation Chevelle, Third Generation Challenger, Third Generation Charger, Fourth Generation Mustang, Fourth Generation Camaro, Fourth Generation Charger, Fifth Generation Mustang, Fifth Generation Camaro, Fifth Generation Charger, Sixth Generation Mustang, Sixth Generation Camaro, Sixth Generation Charger, Seventh Generation Charger, Seventh Generation Mustang
