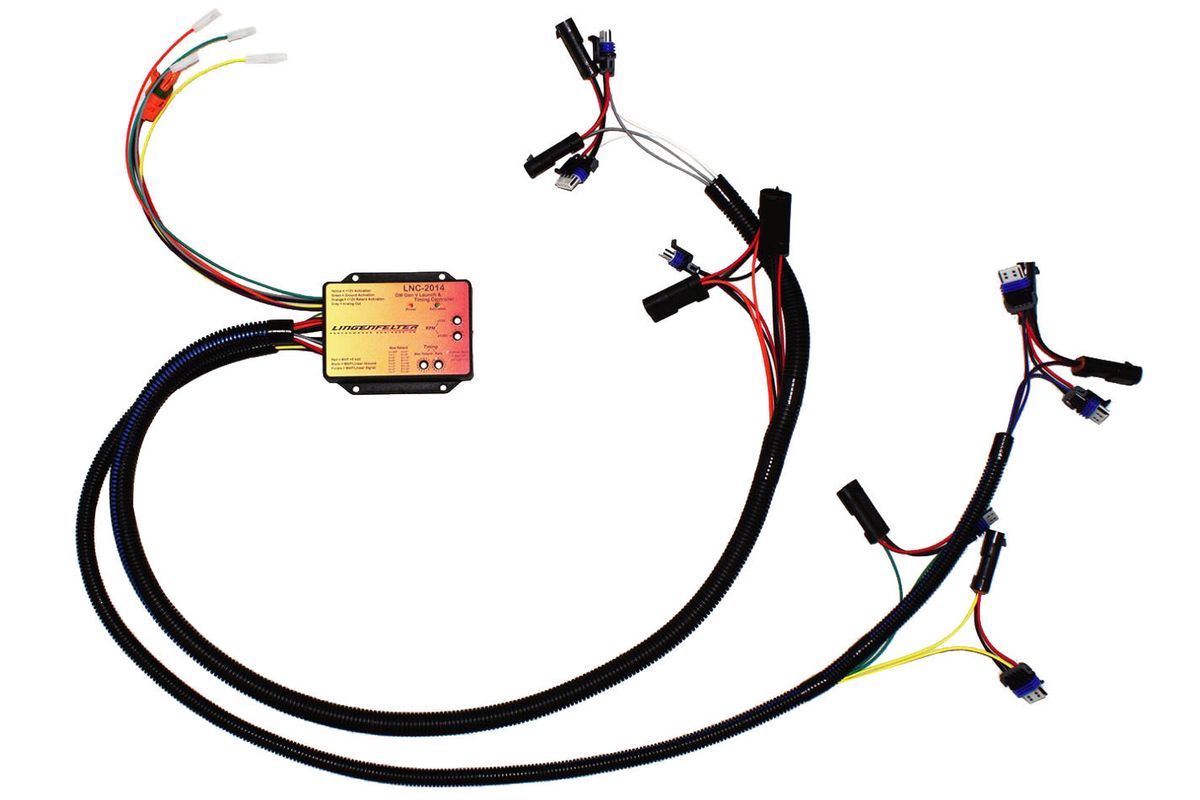

C7 2014-2019 Chevrolet Corvette LNC-2014 Gen V V8 RPM Limiter Timing Retard Launch Controller - LT1 & LT4 - Lingenfelter
- Part #75422
- Ref Part #Mods #23142
MSRP $632.99
Sale Price
$549.99
Affirm - Available for US shipments only.
Stock Status:
Available Please allow additional time for delivery. This item requires special handling or may ship directly from our supplier.
Features/Benefits
- If you're drag racing your C7 Z06 and need consistent launches from a standing start then check out the Lingenfelter LNC-2014 Gen V V8 RPM Limiter Timing Retard Launch Controller for LT1 & LT4 Engines. With turbocharged, it can be used to retard the timing in order to build more boost.
- The LNC-2014 has fully encapsulated construction, is custom molded, with a high temperature, glass filled Nylon 6 enclosure, so it has direct access to controller settings without requiring panels or covers to be removed. Each coil drive circuit has a dedicated timer to keep the timing accurate over the full RPM range. The coil pack connection design is plug and play, so it's easy to install and remove.
- For reliable and fast acting spark based engine RPM limit control, the LNC-2001 can be used as an adjustable individual RPM limiter. This is useful in cars that have an auxiliary fuel control system where it's not possible to shut it and the ECM/PCM fuel at the same time, because if they don't turn off at the same time, the engine could be severely damaged.
- Note: Because it disables spark to individual cylinders, and not fuel, this is not meant for street cars or those equipped with cat converters and is only for race track use only. Don't operate engine with this active for extended periods of time, because the raw fuel in exhaust could result in a backfire.
- Corvette Is A Registered Trademark Of The General Motors Corporation.
- Engineered to Meet or Exceed OEM Specifications
- Reference Part Number(s): Mods #23142
- Associated Years: 2014-2019
- Item Quantity Size: 1 EA
- Shipping Dimensions (LxWxH): 11.6in x 16.8in x 8.8in
- Weight: 12 pounds
- Tariff Code: 8409914000
- Keywords: Fuel Control Computer, Fuel Injection & Related Components
Additional Details
- Features:
- For drag racing applications.
- Fully encapsulated potted construction.
- Custom molded.
- High temperature, glass filled Nylon 6 enclosure.
- Direct access to controller settings.
- Plug and play.
- 40 MHz 16-bit automotive qualified processor with eight channel Enhanced Time Module.
- RPM limiter activation point can be adjusted from 1,500 to 9,900 RPM in 100 RPM increments.
- Both Ground Activation and +12 Volt Activation inputs are provided for RPM limit activation.
- Digital noise filtering to isolate the LNC from unwanted electrical signals.
- Separate RPM x100, RPM x1000, Max Retard and Rate switches for easy setting adjustments.
- Analog voltage output wire for sending timing retard information to data acquisition systems EFILive, HPTuners, DashDAQ, etc.
- Fits:
- C7 2014-2019 Z06 Corvettes w/ LT1 & LT4 engines.;
