C1 1955-1957 Chevrolet Corvette Wiring Diagram V8 Laminated 17"X22" - Lectric Limited, Inc.
- Part #490055
- OEM Part #VWD5557
MSRP $14.99
Sale Price
$12.99
Stock Status:
Due In On order from our supplier.
Fitment & Application
Submodel: Base
Notes: 1955 Late V8
Features/Benefits

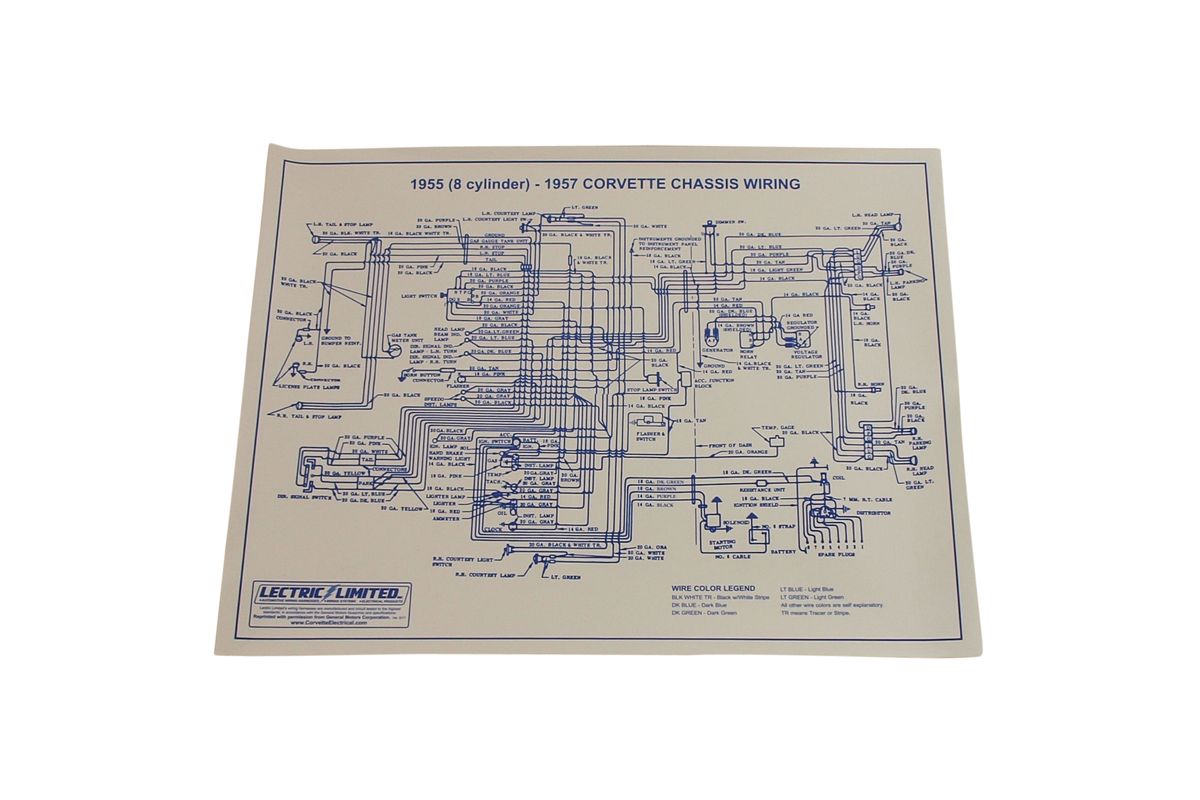

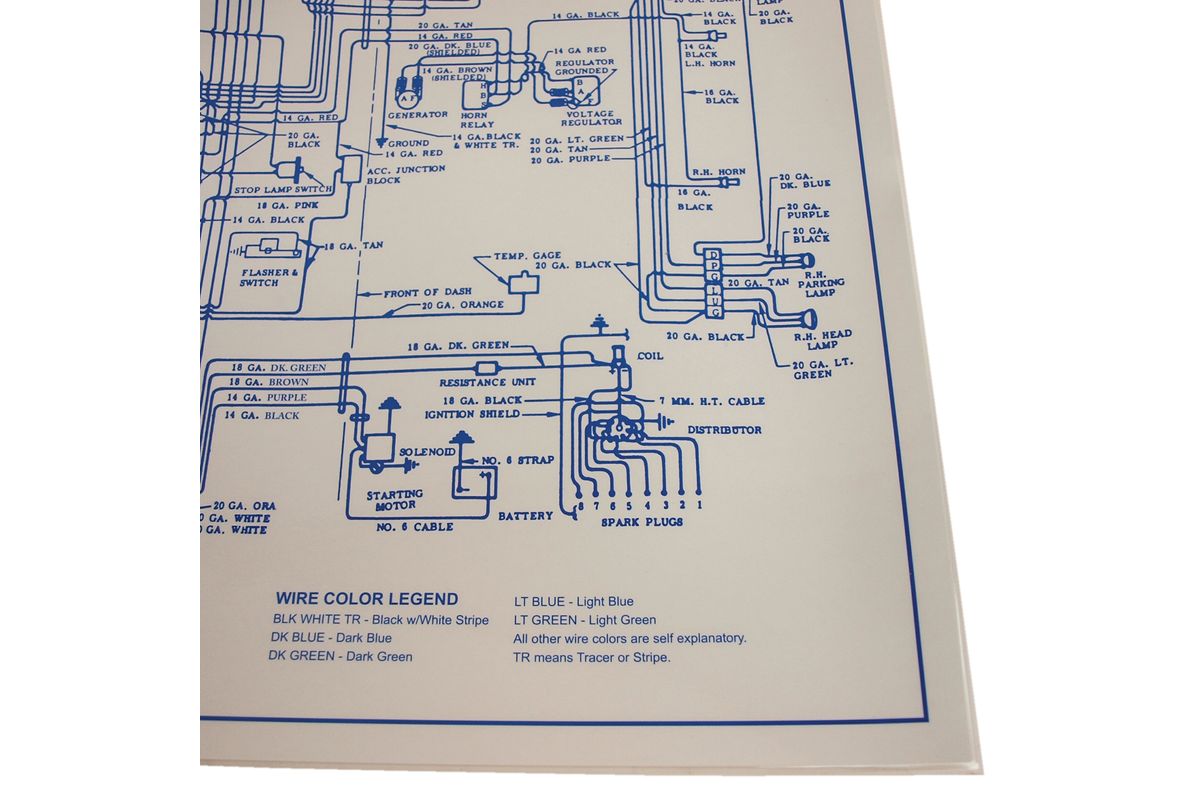

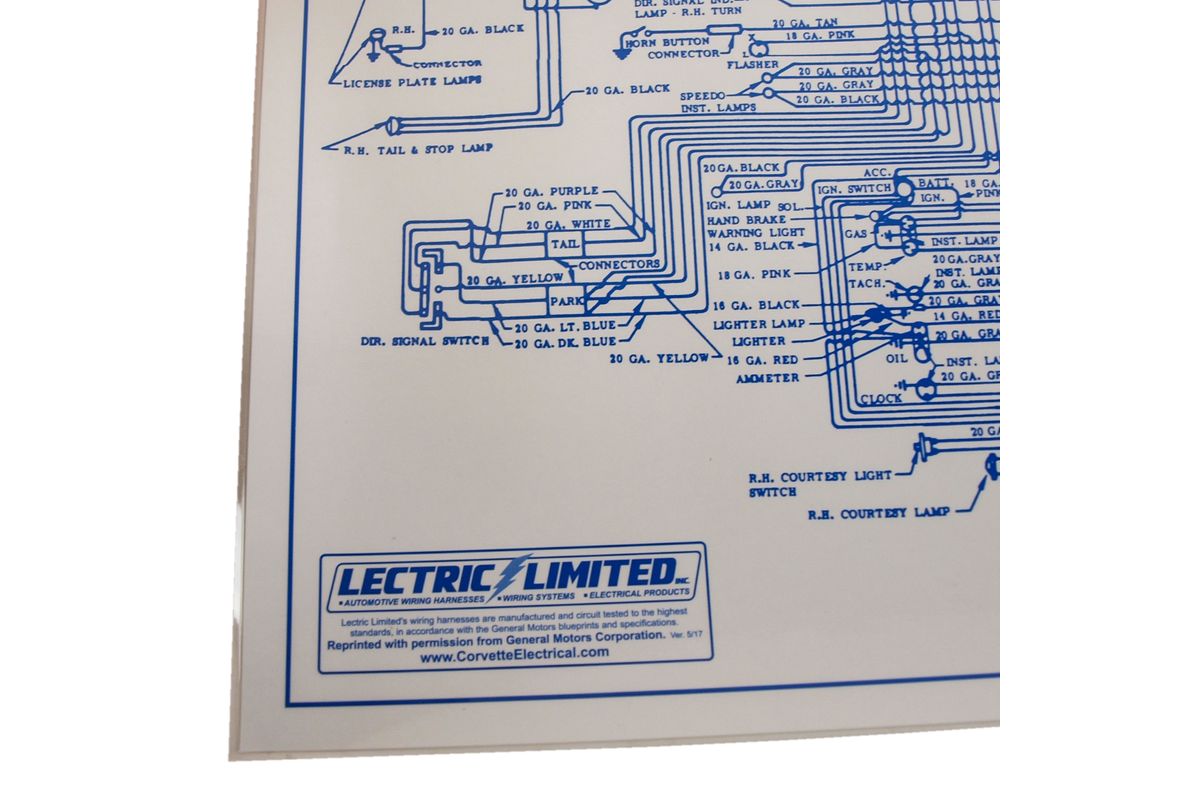

- Our new Wiring Diagrams illustrate complete, detailed wiring information for your Corvette.
- The diagrams are illustrated on an easy-to-read 17" x 22" format.
- They're laminated so they're easy to keep clean and they'll stand up to repeated use in the shop.
- 1955 Late V8
- Engineered to Meet or Exceed OEM Specifications
- MADE IN AMERICA
- OEM Part Number: VWD5557
- Associated Years: 1955-1957
- Notes: 1955 Late V8
- Item Quantity Size: 1 EA
- Shipping Dimensions (LxWxH): 22in x 17in x 0.2in
- Weight: 0.14 pounds
- Tariff Code: 8544300000
- Keywords: Books, Literature & Repair Manuals, Repair Manual
Additional Details
- Shop Retail Corvette Parts & Accessories
- Shop Wholesale Corvette Parts & Accessories
- Fits Year: 1955, 1956, 1957
- Fits Generation: C1 Corvette
