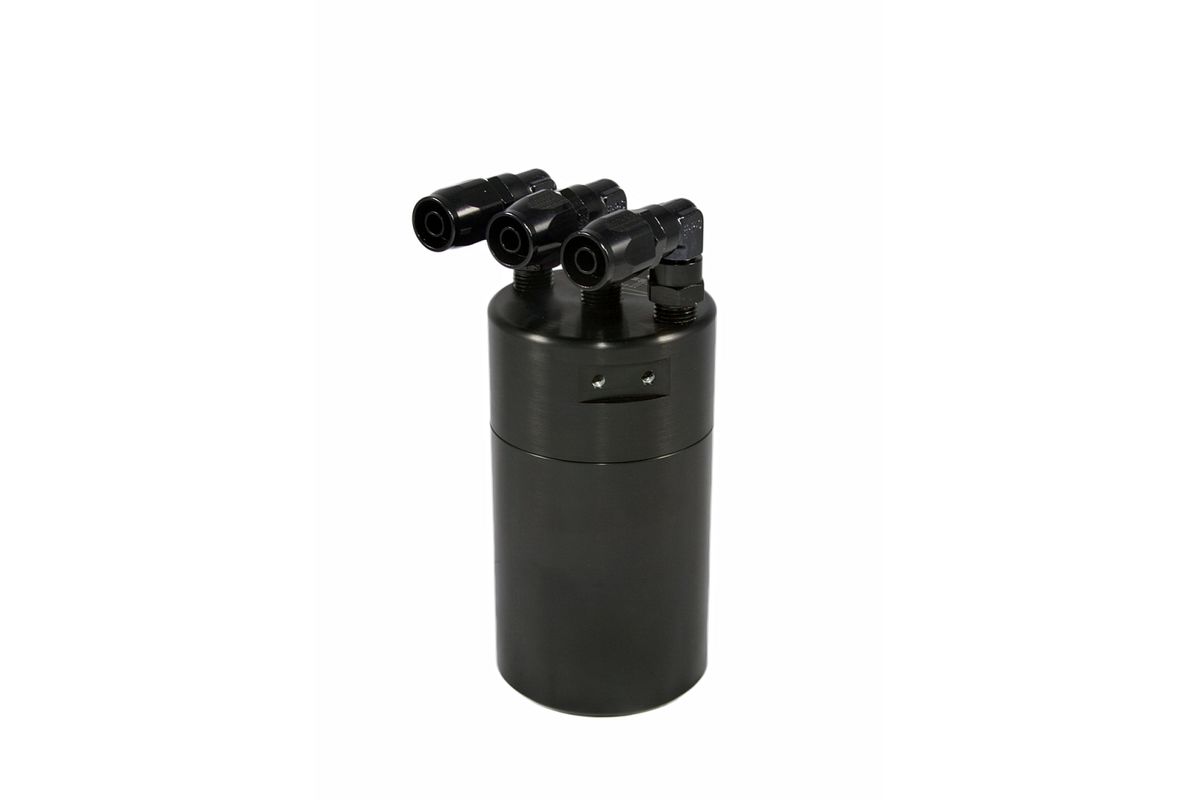

C7 2014-2019 Chevrolet Corvette CATCH CAN WITH CLEAN AIR SEPARATOR & CHECK VALVES - Z51 WITH DRY SUMP - Auto Accessories Of America
- Part #76808
- OEM Part #Mods #10958-1002
MSRP $540.99
Sale Price
$469.99
Affirm - Available for US shipments only.
Quantity Available: 1
Features/Benefits
- Specifically designed kit for your C7 Corvette Stingray 2014+.
- 3-Chamber Design WITH Larger 3rd Stage.
- 2 x Exit Ports - (1) Exit connection goes to the vacuum port downstream of your Throttle Body, the other Exit Connection goes to your Stock OEM Inlet Coupler (you will need to drill a hole in the stock coupler and install the supplied hose barb).
- 2 x Exit Check Valves.
- 30 % more volume than our Standard Catch Can.
- Can be Fully Disassembled for easy Cleaning or Inspection.
- Available in BLACK Anodize Color Only.
- ** Our Check Valves are integrated internally to our EXIT Hose Barb Fittings
- (This design is currently Patent Pending).
- Same 3-Chamber Design that made the Elite Catch Can so popular and functional, but with a larger volume.
- Function:
- Elite Engineering's PCV Oil Catch Can has a unique 3-chamber design to effectively separate oil from the crankcase vapors, thereby eliminating all negative effects of excessive intake system oil contamination. Oil vapor from the crankcase enters the 1st - Inlet/Filtration chamber where it is slowed down and caught in the stainless steel mesh, it then moves onto the 2nd - Transition/Diffusion chamber. The Diffusion chamber has a very specific set of holes to remove the oil and only let clean air vapor pass. Lastly, the vapor passes into the 3rd - Exit Chamber before it exits the Catch Can.
- Corvette Is A Registered Trademark Of The General Motors Corporation.
- Engineered to Meet or Exceed OEM Specifications
- OEM Part Number: Mods #10958-1002
- Associated Years: 2014-2019
- Item Quantity Size: 1 KT
- Shipping Dimensions (LxWxH): 13.6in x 10.4in x 8.9in
- Weight: 3.1 pounds
- Tariff Code: 8421290015
- Keywords: Engine Oil Catch Can, Engine Parts
Additional Details
- Construction:
- Machined from billet 6061-T6 aluminum alloy, and then anodized in black for a striking look. The internal condensing/filtration screen is stainless steel encased inside an aluminum alloy housing designed for low flow restriction. The housing can be disassembled for screen inspection, cleaning or replacement if needed. The inlet and outlet hose fittings are brass, and threaded into the body and sealed with Teflon tape. Supplied hoses are fuel and oil vapor compatible (SAE 30R7 rated). The bottom catch can reservoir screws onto the top of the unit, and is sealed with a built in O-ring. Inspection and cleaning is easy by simply removing the bottom of the unit without disturbing the mounting system or hoses.
- In keeping with our high quality standards, all supplied mounting hardware and screws are stainless steel. The supplied custom machined mounting bracket is black anodized 6061-T6 aluminum, and is attached to your specific vehicle with the hardware supplied.
- Each Catch Can kit includes everything you need to install the system. Basic mechanical skills and common hand tools are the only things required.
- Shop Retail Corvette Parts & Accessories
- Shop Wholesale Corvette Parts & Accessories
- Fits Year: 2014, 2015, 2016, 2017, 2018, 2019
- Fits Generation: C7 Corvette
