Features/Benefits

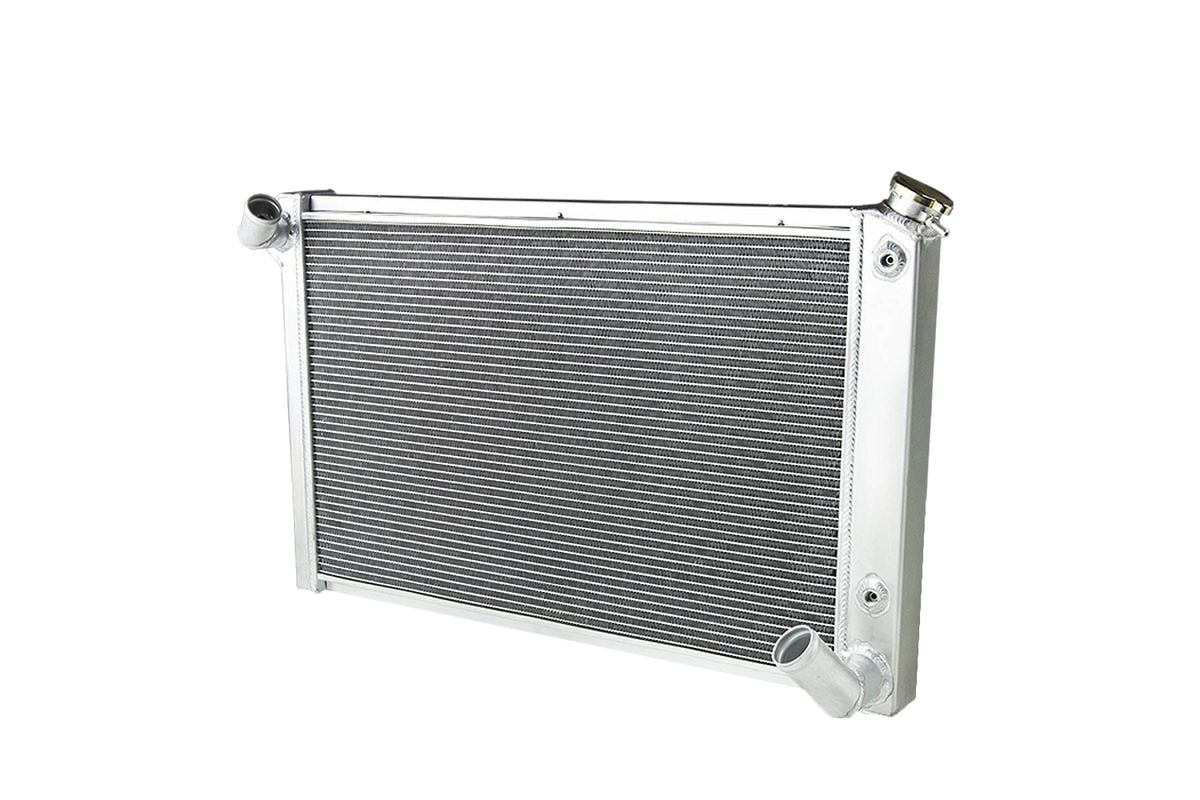

• 1984-1990 Corvette 3-Row Aluminum Radiator.
• Brand New.
• 30% More Cooling Capacity Over Stock or Standard Replacements.
• Radiator is Welded in a Vacuum Brazing Furnace.
• NO Epoxy Used in Manufacturing These Radiators.
• Tanks are 100% TIG Welded.
• Each Radiator Goes Thru Quality Control Before Shipping.
• Built In Oil Cooler.
• Overall Size: 28.750" x 16.000" x 2.500".
• Core Size: 23.500" x 15.750" x 2.125".
• Inlet/Outlet: 1.375" both.
• 1989-1996 Corvette 3-Row Aluminum Radiator.
• Brand New.
• 30% More Cooling Capacity Over Stock or Standard Replacements.
• Radiator is Welded in a Vacuum Brazing Furnace.
• NO Epoxy Used in Manufacturing These Radiators.
• Tanks are 100% TIG Welded.
• Each Radiator Goes Thru Quality Control Before Shipping.
• Built In Oil Cooler.
• Saddle Mount System.
• Upper Inlet: 1.5".
• Lower Outlet: 1.75"
• Note: Transmission coolant lines will require original radiator threaded fittings for connection.
• Note: Corvette Is A Registered Trademark Of The General Motors Corporation.

• Engineered to Meet or Exceed OEM Specifications

• OEM Part Number: Mods #13813-1001
• Associated Years: 1984-1990
• Item Quantity Size: 1 EA
• Shipping Dimensions (LxWxH): 18.9in x 25.8in x 24in
• Weight: 22.5 pounds

• Tariff Code: 8708915000

• Keywords: Radiator, Radiators, Intercoolers, Fans & Cooling
