Features/Benefits

• Includes:

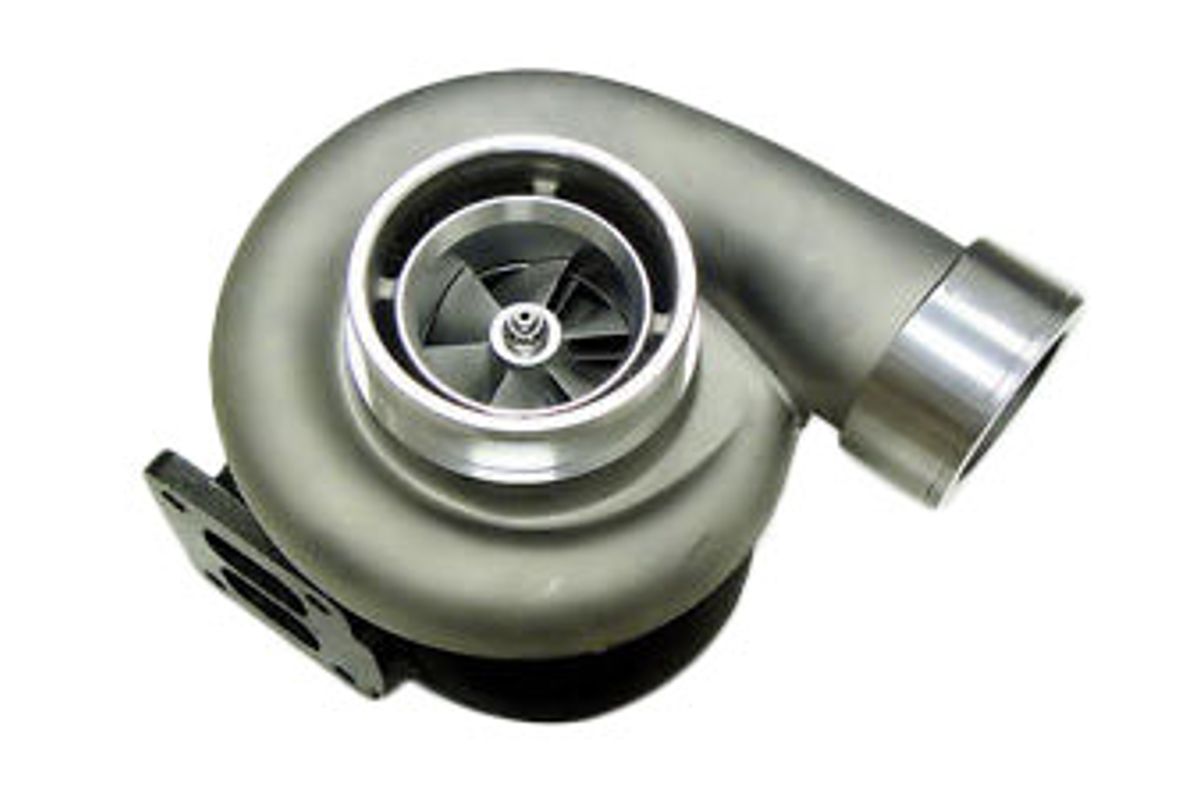

• (1) GT45 Turbocharger.
• (1) Turbocharger Heat Wrap Blanket.
• Hardware as shown in picture.
• Specs:
• Compressor Inducer /Exducer (MM): 68.70 / 97.80.
• Compressor Trim: 69.
• Materials: Cast Iron/Steel Turbo Housing/Aluminum Controller.
• Exhaust (Downpipe) Flange: 3.50" V-Band.
• Exhaust (Turbo Manifold) Flange: Standard T4 4-Bolt.
• Turbine A/R: 1.05.
• Turbine Inducer / Exducer (mm): 87.40 / 77.00.
• Turbine Trim: 92.
• Intake Inlet/ Outlet: 3.75" / 2.25".
• Compressor A/R: 0.66.
• Surface Finish: Cast.
• Placement on Vehicle: Front, Rear, Left, Right.
• The GT45 turbocharger assembly is designed to be used on engines displacing 1.6L-8.0L and is typically good for around 800HP.
• Recommended boost pressures are 7psi (.5 Bar) to 21psi (1.5 Bar) and boost pressures should not exceed 30 psi (2 Bar).
• Exceeding 21psi (1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan.
• 14psi (1 Bar) is good for a 100% increase in horsepower from a natuRally aspirated engine.
• Also, factory non-turbo engines without forged internal components on high octane pump gas (91-93 octane) it is not recommended exceeding 7psi (.5 Bar) of boost. Doing so could result in damaging your engine.
• Additional parts will be needed to complete installation.
• Corvette Is A Registered Trademark Of The General Motors Corporation.

• Engineered to Meet or Exceed OEM Specifications

• OEM Part Number: Mods #17935
• Associated Years: 1963-2019
• Notes: See Additional Details Tab For Submodel Information.
• Item Quantity Size: 1 EA
• Shipping Dimensions (LxWxH): 14in x 11in x 12in
• Weight: 37.78 pounds

• Tariff Code: 8414800500

• Keywords: Forced Induction Turbochargers & Superchargers, Turbocharger
