Features/Benefits

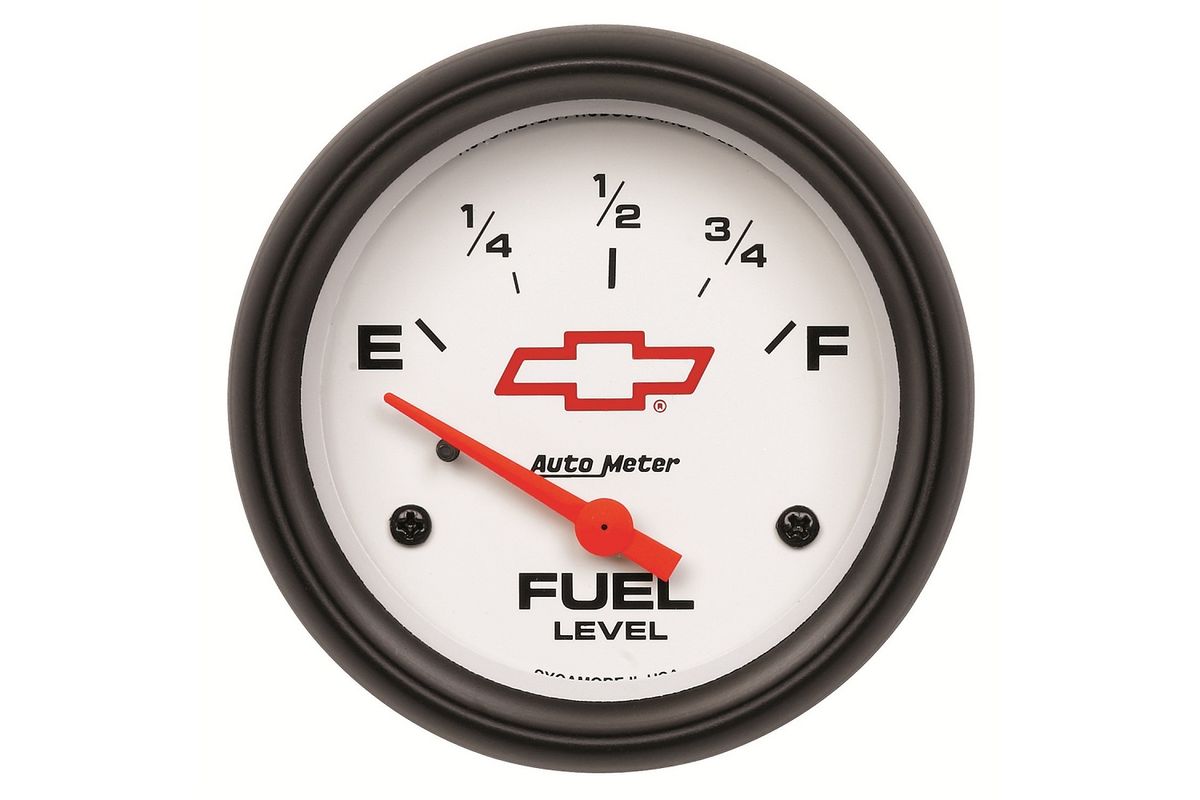

• One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit.
• Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262).
• Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
• Feature PointsTraditional incandescent lighting illuminates around the perimeter of the dialWorks with most 1965 to 1997 Chevrolet/GM senders12 and 16 volt compatible, well-suited with nearly every street car or race car electrical systemGauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installationAutoMeter's race proven air-core electric instruments provide quick and accurate readings.
• Officially licensed GM product.
• Corvette Is A Registered Trademark Of The General Motors Corporation.

• 2-5/8"
• Engineered to Meet or Exceed OEM Specifications

• OEM Part Number: Mods #13280
• Associated Years: 1953-2023
• Notes: See Additional Details Tab For Submodel Information.
• Item Quantity Size: 1 EA
• Shipping Dimensions (LxWxH): 2.5in x 2.5in x 2.7in
• Weight: 0.2 pounds

• Tariff Code: 9025801000

• Keywords: Fuel Level Gauge, Gauges, Instrument Panel, Restomod
