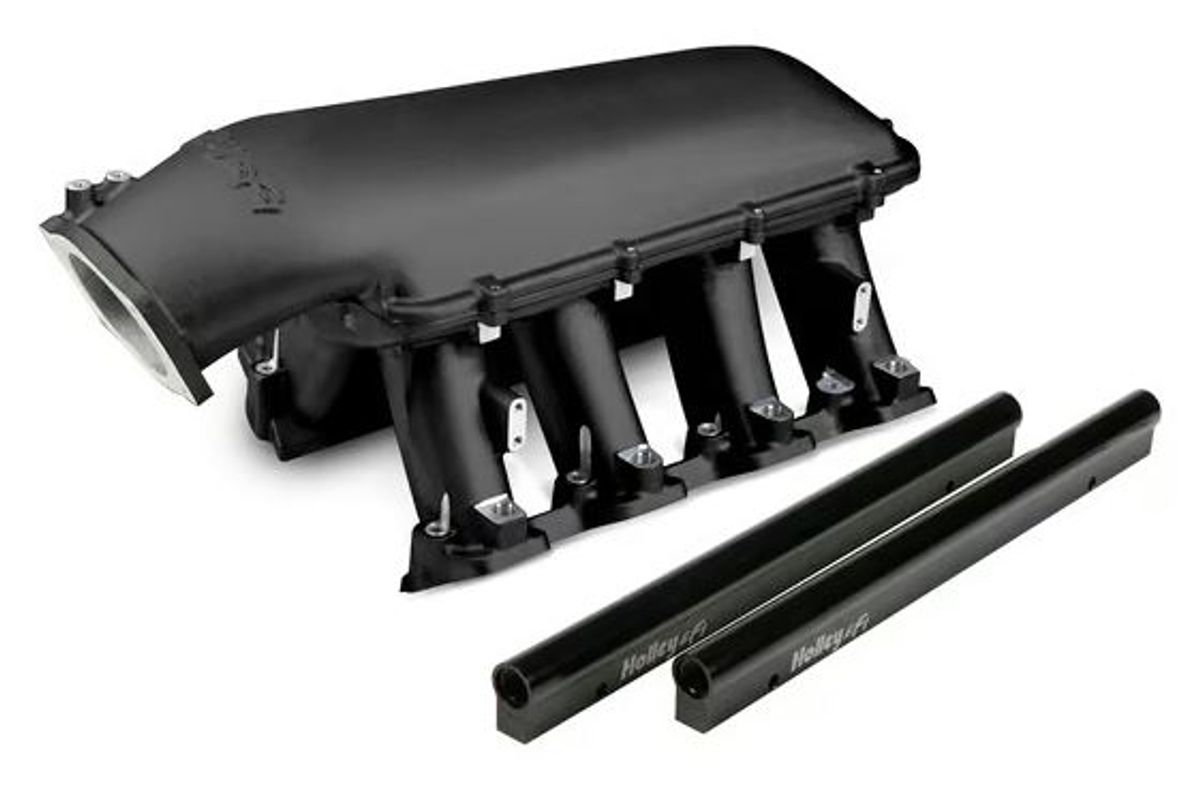

1953-2024 Hi-Ram Intake Manifold - GM LS3/L92 - Black - 300-117BK - Holley
- Part #213468
- OEM Part #300-117BK
MSRP $1,345.99
Sale Price
$1,111.99
Affirm - Available for US shipments only.
Stock Status:
Available Please allow additional time for delivery. This item requires special handling or may ship directly from our supplier.
Fitment & Application
Notes: See Additional Details Tab For Submodel Information.
Also Fits: 1953-2024 Chevrolet Corvette, 1955-1970 Ford Fairlane, 1959-1974 Ford Galaxie, 1960-1970 Ford Falcon, 1962-1979 Chevrolet Nova / Chevy II, 1964-1970 Plymouth Belvedere, 1964-1977 Chevrolet Chevelle, 1964-2024 Ford Mustang, 1966-2024 Dodge Charger, 1967-2002 Pontiac Firebird, 1967-2024 Chevrolet Camaro, 1968-1976 Ford Torino, 1970-2024 Dodge Challenger
Features/Benefits
- The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
- The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
- Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
- EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Cast aluminum construction.
- Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
- Base Plenum Top Mounting Flange Height - 8.42" to the lifter valley cover flange on engine block.
- Total Height with 92/102mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.
- Port Size - 2.49" Height x 1.21" Wide
- Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
- Plenum Top Gasket Type - 3/32" Round O-ring Cord
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)
- Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered 4.25 sq in to 2.77 sq in
- Engineered to Meet or Exceed OEM Specifications
- MADE IN AMERICA
- OEM Part Number: 300-117BK
- Associated Years: 1953-2024
- Notes: See Additional Details Tab For Submodel Information.
- Item Quantity Size: 1 KT
- Shipping Dimensions (LxWxH): 26.7in x 16.8in x 16.2in
- Weight: 31.85 pounds
- Tariff Code: 8708947550
- Keywords: Air Intake, Engine Intake Manifold, Engine Parts, Limited Time Offers
Additional Details
- Fits The Following Submodels For The Respective Years: Base, Stingray, Indianapolis 500 Pace Car, Silver Anniversary Edition, Collector's Edition, 35th Anniversary Edition, ZR-1, 40th Anniversary Edition, Grand Sport, Hardtop FRC, Z06, 50th Anniversary Edition, 50th Anniversary Edition Pace Car, 427 Limited Edition Z06, ZR1, Z06 Carbon, 427, Z51
