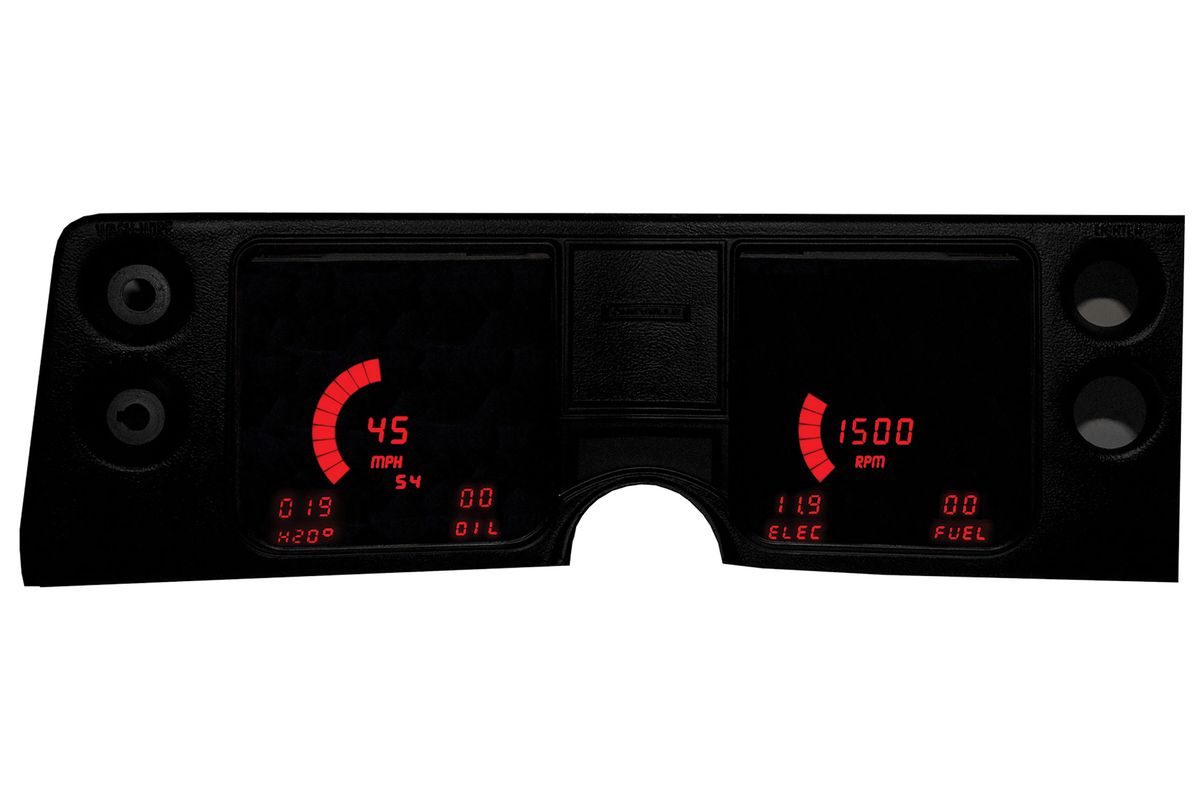

Second Generation 1968 Chevrolet Chevelle LED Digital Gauge Panel - Red - Intellitronix
- Part #CH0536
- OEM Part #DP5001R
MSRP $561.99
Sale Price
$487.99
Affirm - Available for US shipments only.
Stock Status:
Available Please allow additional time for delivery. This item requires special handling or may ship directly from our supplier.
Fitment & Application
Submodels: Concours, Malibu, Nomad, SS, 300, 300 Deluxe
Notes: Bezel Not Included. Make a note at the time of checkout if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit.
Features/Benefits
Your 1968 Chevelle Will Be The Talk Of The Neighborhood With This 1968 Chevelle LED Digital Replacement Gauge Panel By Intellitronix. The 68 Chevelle Dash Features 2 Direct Fit Printed Circuit Boards, 2 Custom Fit "Smoked" Plexiglass Face Plates, Universal Temperature, Oil Pressure, And Speedometer Sending Units With Sender And Sensor For Vehicles Without Electronic Transmission Or Cruise Control. Mounting Hardware And Instructions For Installation Are Included.- Engineered to Meet or Exceed OEM Specifications
- OEM Part Number: DP5001R
- Associated Year: 1968
- Notes: Bezel Not Included. Make a note at the time of checkout if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit.
- Item Quantity Size: 1 ST
- Shipping Dimensions (LxWxH): 4in x 14in x 10in
- Weight: 3 pounds
- Tariff Code: 9025801000
- Keywords: Gauges, Instrument Cluster, Instrument Panel, LED Lighting, Restomod
Additional Details
- Speedometer Reads Up To 255 MPH And Features Odometer, Trip Meter, One-Button Calibration, Regardless Of Tire Size, Gear Ratio, Or Transmission, And 0-60 Time, 1/4 Mile Elapsed Time, And High Speed Recall, All With The Push Of A Button. The Speedometer Can Be Used With Electronic Cruise Control Senders Or Use Included S9013 Universal Speedometer Sending Unit, If Your Vehicle Is Not Equipped With A Functional Cruise Control.
- Tachometer Displays 0-9900 RPM In 100 RPM Increments.
- Water Temperature Displays 100-300F Range With Sender S8013 Included. Please Specify Bushing Size For Sender As We Normally Send A 1/2 Inch One, But We Can Send A 3/8 Inch One Instead Upon Request. Please Just Add A Note At Check-Out.
- Oil Pressure Displays 0-100 Psi Range. Oil Pressure Sender Included.
- Voltmeter Displays 7.0-25.5 Volts Range And No Sending Unit Is Required.
- Fuel Level Displays 0-99% Range In 1% Increments And Works With Existing GM Fuel Level Sending Unit.
- The Panels Also Feature Turn Signals And High Beam Indicator Making It The Ultimate Way To Keep The Ride You Love Cruising Through The Times.
- If You Have An LS Engine, Then Please Be Aware That You May Need Adapters (Metric To Nonmetric) For Our Sending Units.
- Shop Retail Chevelle Parts & Accessories
- Shop Wholesale Chevelle Parts & Accessories
- Fits Year: 1968
- Fits Generation: Second Generation Chevelle
