1978-1987 Chevrolet El Camino RTX Instrument System W/1978-1985 Gauge Styling - Dakota Digital
- Part #EL1097
- OEM Part #RTX-78C-MC-X
MSRP $1,797.99
Sale Price
$1,562.99
Affirm - Available for US shipments only.
Stock Status:
Available Please allow additional time for delivery. This item requires special handling or may ship directly from our supplier.
Fitment & Application

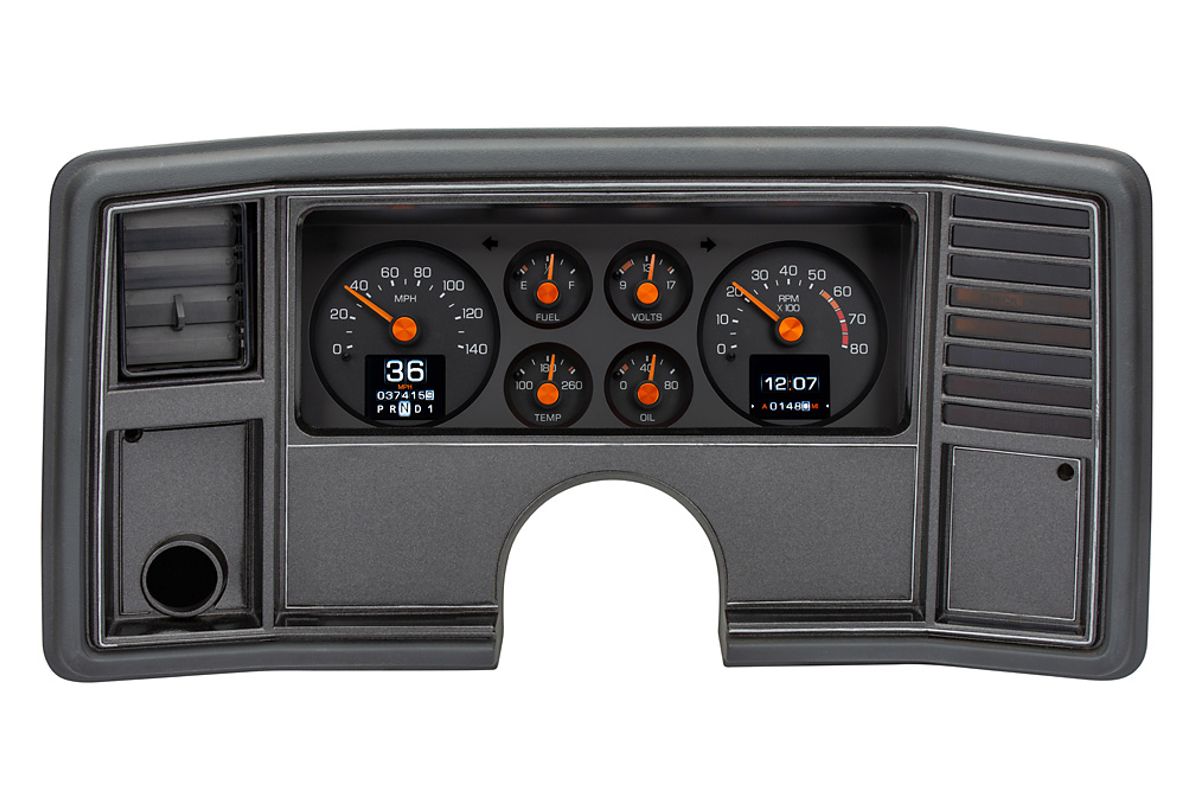

Notes: Please Note Current Lead Time On New Orders Is 18-22 Weeks. Bezel Not Included, Shown For Visual/Presentation Purposes. System Uses OEM Or Reproduction Style Bezel. Does not fit sweep-style clusters.
Features/Benefits

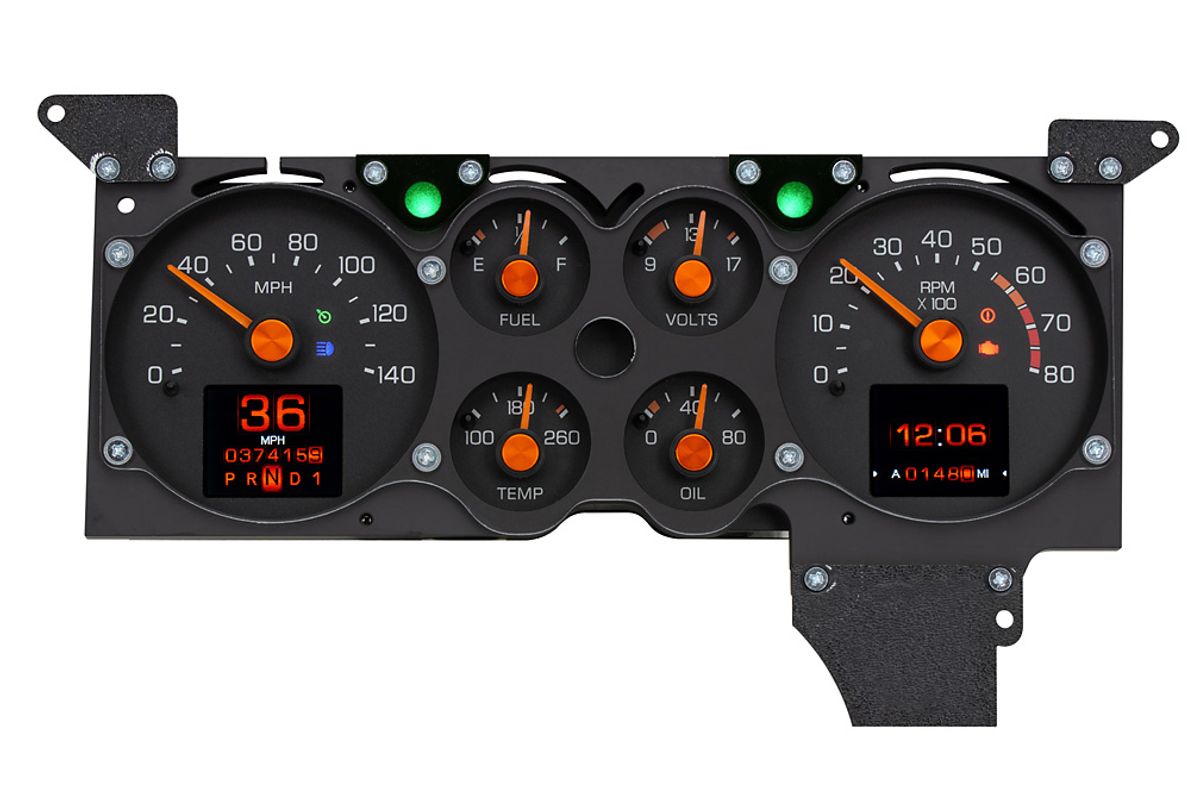

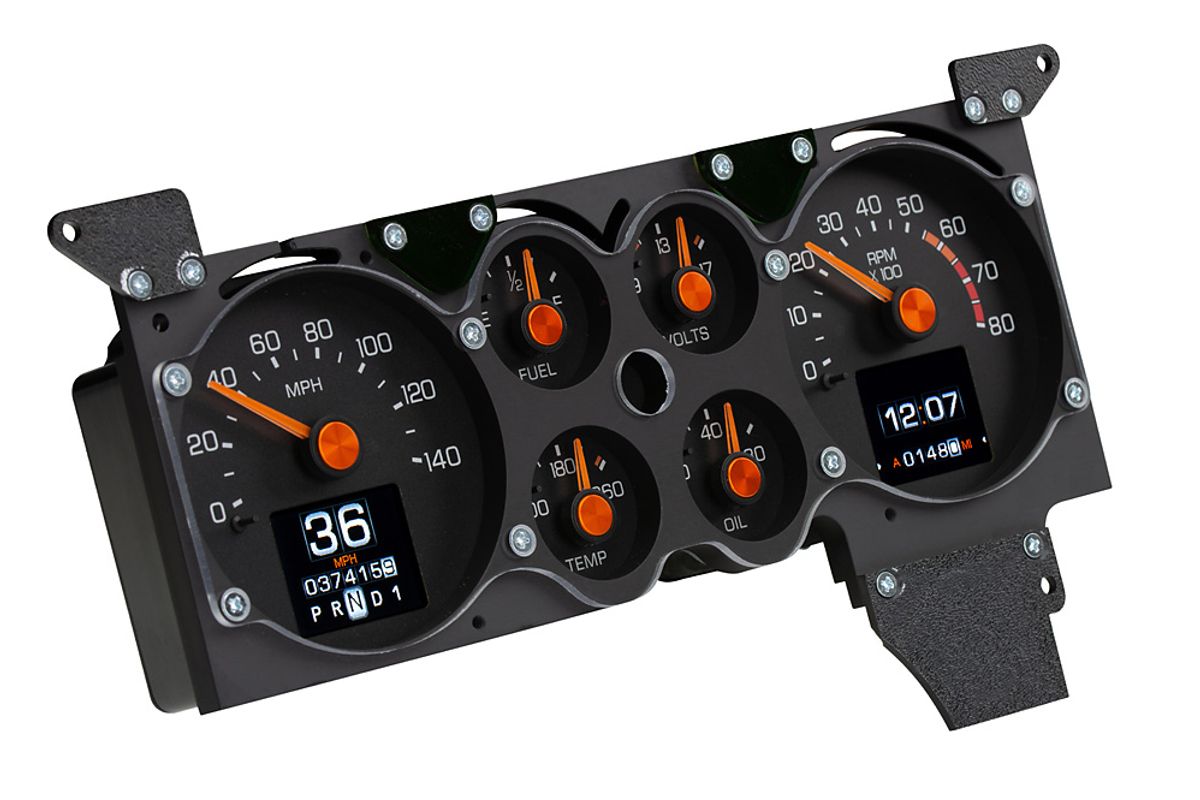

- This Direct Fit System Combines The Look Of The Early Instrument Clusters With Full-Color Led Backlighting And TFT Message Center Displays.
- Use Your Stock, Round-Gauge Style Cluster For Installation In Your El Camino!
- The RTX Series Is The Latest From Dakota Digital, Focused On Retaining That Stock Look Without Sacrificing The Late-Model Features You Love. Every Effort Has Been Put Forth To Incorporate OEM Design Elements Regarding The Layout, Face Styling And Indicators.
- A Casual Glance May Dismiss These As Original Equipment, But Once You Hit The Switch And The LED Backlighting Comes On In Your Favorite Color Scheme, All Doubts Will Be Removed.

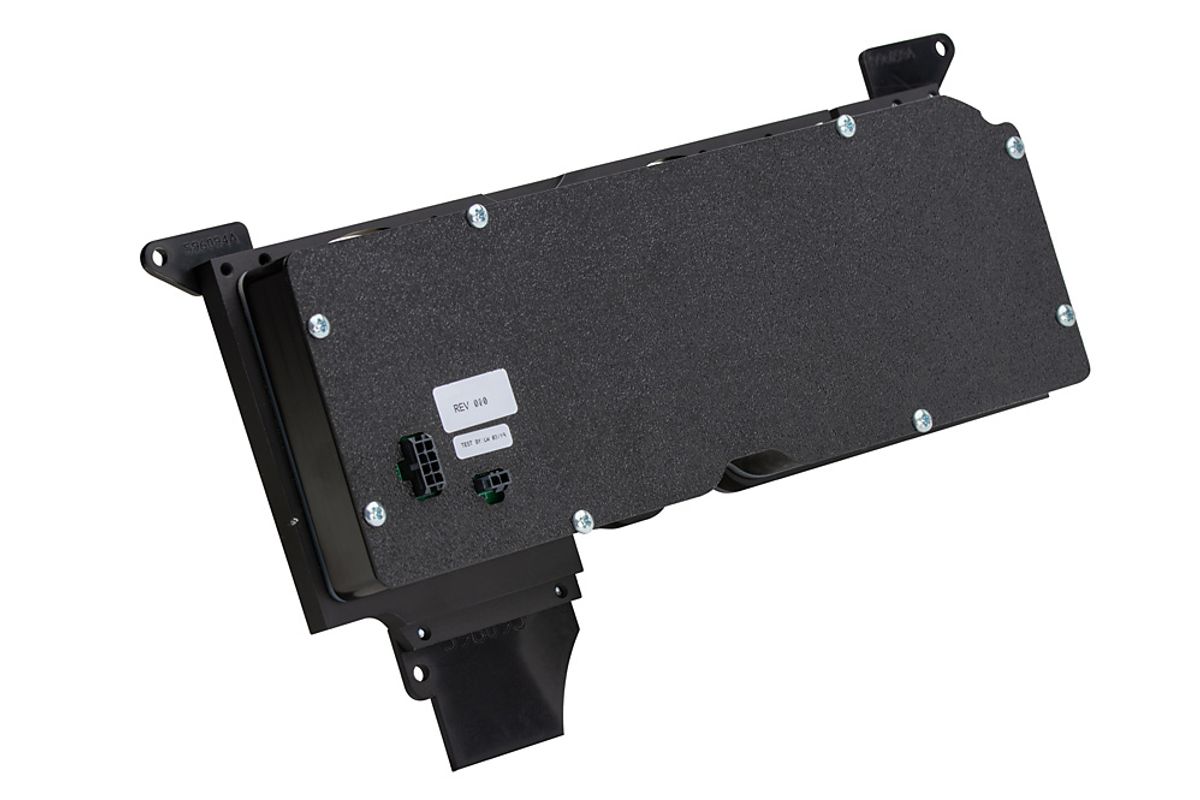

- Starting From Scratch, CNC Machined Housings Are Filled With Electronics Designed And Built In-House, Helping Dakota Digital Once Again Raise The Bar For Aftermarket Instrumentation. The High-Definition TFT Message Centers Can Be Fully Configured To Display Just About Any Piece Of Information Needed. As You've Come To Expect From Dakota Digital, The RTX Series Utilizes A Central Control Box To Make Installation And Setup As Easy As Possible.
- Analog Guages Included - 140 MPH Speedo, 0-8,000 RPM Tachometer, 0-80 PSI Oil Pressure, 100-260F Water Temperature, E, 1/4, 1/2, 3/4, F Fuel Level, 9- 17 VDC Voltmeter
- Engineered to Meet or Exceed OEM Specifications
- OEM Part Number: RTX-78C-MC-X
- Associated Years: 1978-1987
- Notes: Please Note Current Lead Time On New Orders Is 18-22 Weeks. Bezel Not Included, Shown For Visual/Presentation Purposes. System Uses OEM Or Reproduction Style Bezel. Does not fit sweep-style clusters.
- Item Quantity Size: 1 EA
- Shipping Dimensions (LxWxH): 24in x 14in x 6in
- Weight: 7 pounds
- Tariff Code: 9025801000
- Keywords: Gauges, Instrument Cluster, Instrument Panel, Restomod
Additional Details
- Digital Message Center Includes - Standard Displays Including - Odometer (One Time User Settable, Million Mile), Dual (A/B) Trip Meter (0- 9,999.9), Estimated Range/ Miles To Empty, Performance Meters Including - 0- 60 MPH Timer, 1/4 And 1/8 Mile Time, 1/4 And 1/8 Mile End Speed (Trap Speed), High Speed Recall, High RPM Recall
- Built In Indicators Include - Turn Signals (Left/ Right), High Beam, Check Engine, Parking Brake, Cruise Control (On/ On & Engaged When Vehicle Is Equipped), Gear Position (Optional UN0505 Sensor Required), 4 X 4 (When Vehicle Is Equipped), Wait To Start (When Vehicle Is Equipped), Two Auxiliary Input Indicators With User-Programmable Labels, Each Analog Gauge Sweep Contains A Red Led Indicator For Quick Notice Of A Warning Condition (Except Speedo)

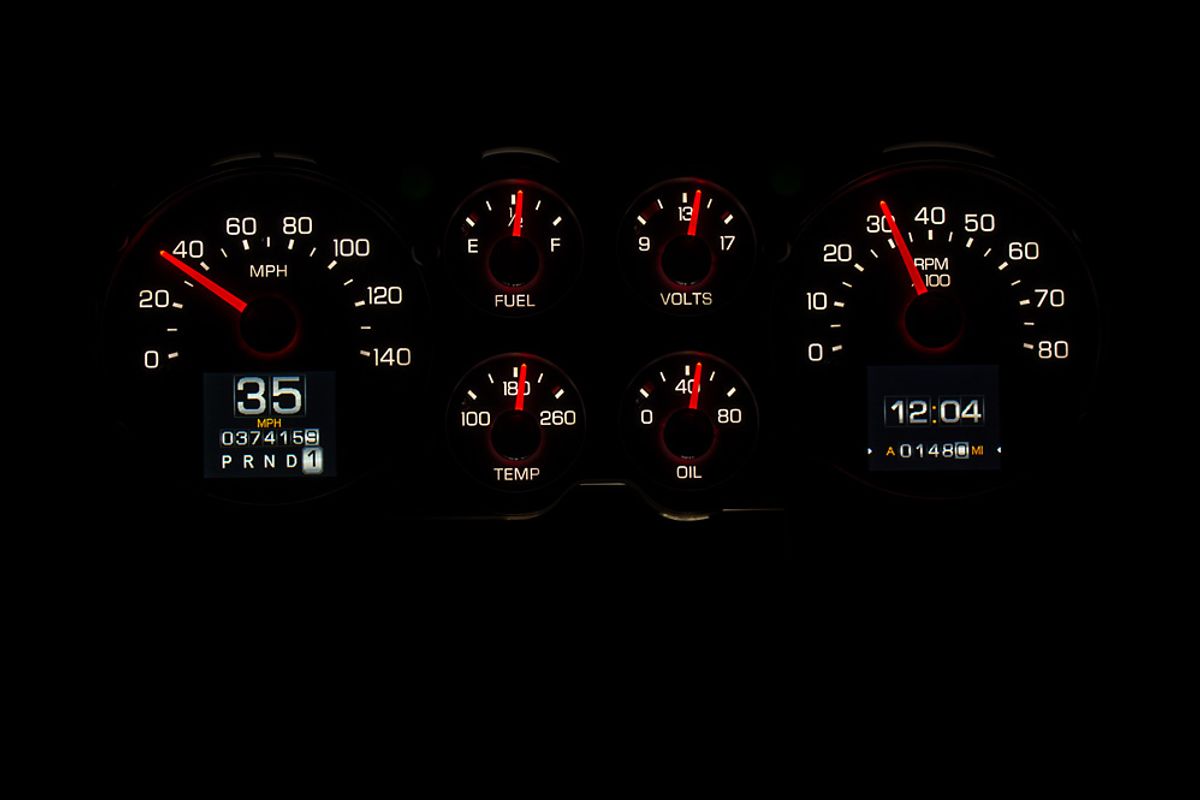

- Lighting Technology - Over 30 User-Selectable Color Options Allow You To Independently Change The Needle Color, Sweep Color And Digital TFT Display Color, Both Daytime And Nighttime Brightness Can Be Easily Controlled Through The RTX Setup Menu, Allowing You To Choose Your Preferred Lighting Intensity Level, Toggled By The Activation Of The Headlight Switch. If On-The-Fly Rotary Type Control Is Desired, The UN0500 Is A Common Accessory To Add This Functionality. 12 Factory Preset Color Themes Or Choose All Of The Color Zones Yourself.
- All Calibration Settings Are Handled Through Onboard Capacitive Touch Switches Or The Remote Bluetooth App. While Many Calibration Settings Exist, The Speedo And Fuel Level Are Completed In Most Cases (Unless UN0504 Is Used, Negating The Need To Calibrate The Speedo) Through A Few Taps Of The Pushbuttons And A Short Test Drive Of The Vehicle.
- Shop Retail El Camino Parts & Accessories
- Shop Wholesale El Camino Parts & Accessories
- Fits Year: 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
