C1 1958-1962 Chevrolet Corvette RTX Instrument System - Dakota Digital

$2,180.99

Affirm - Available for US shipments only.

Quantity Available: 1

C1 1958-1962 Chevrolet Corvette RTX Instrument System - Dakota Digital

$2,180.99

Affirm - Available for US shipments only.

Quantity Available: 1
Fitment & Application

Submodel: Base

Notes: Please Note Current Lead Time On New Orders Is 18-22 Weeks. Dash Pod Not Included, Gauges Mount In Existing Dash Structure.

Features/Benefits

Features/Benefits

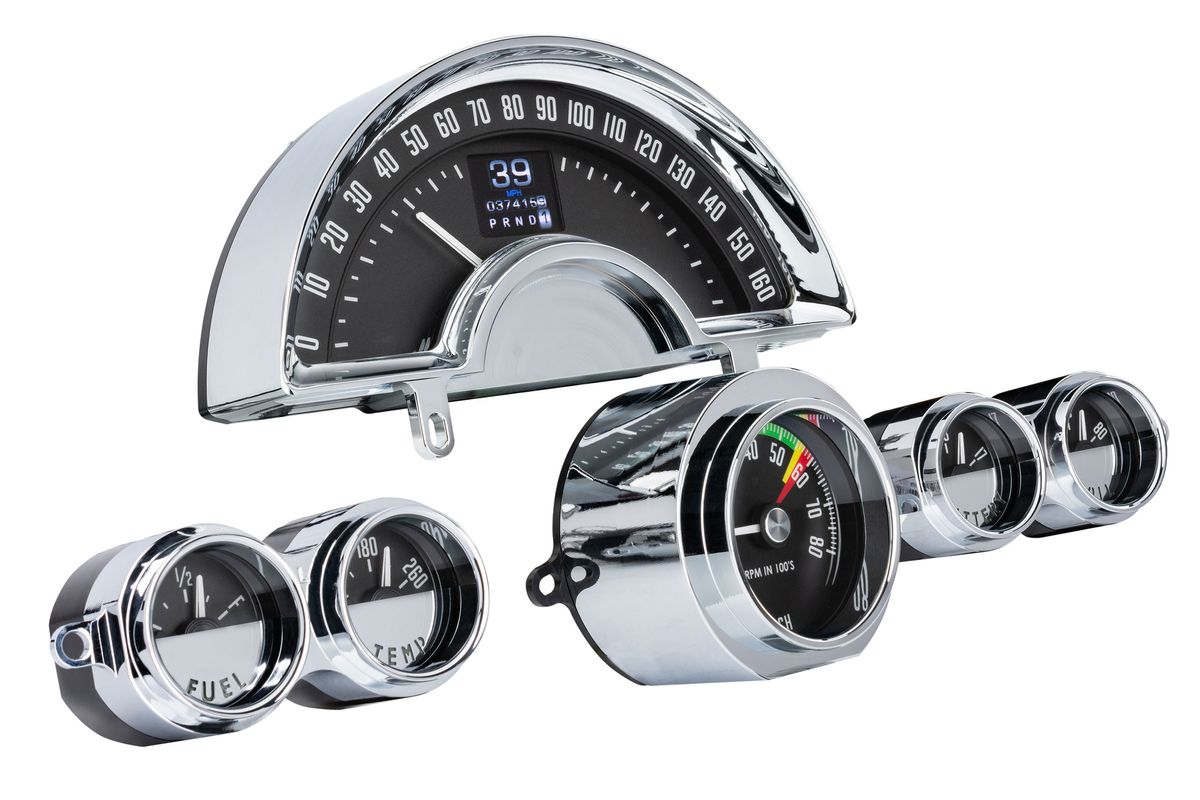

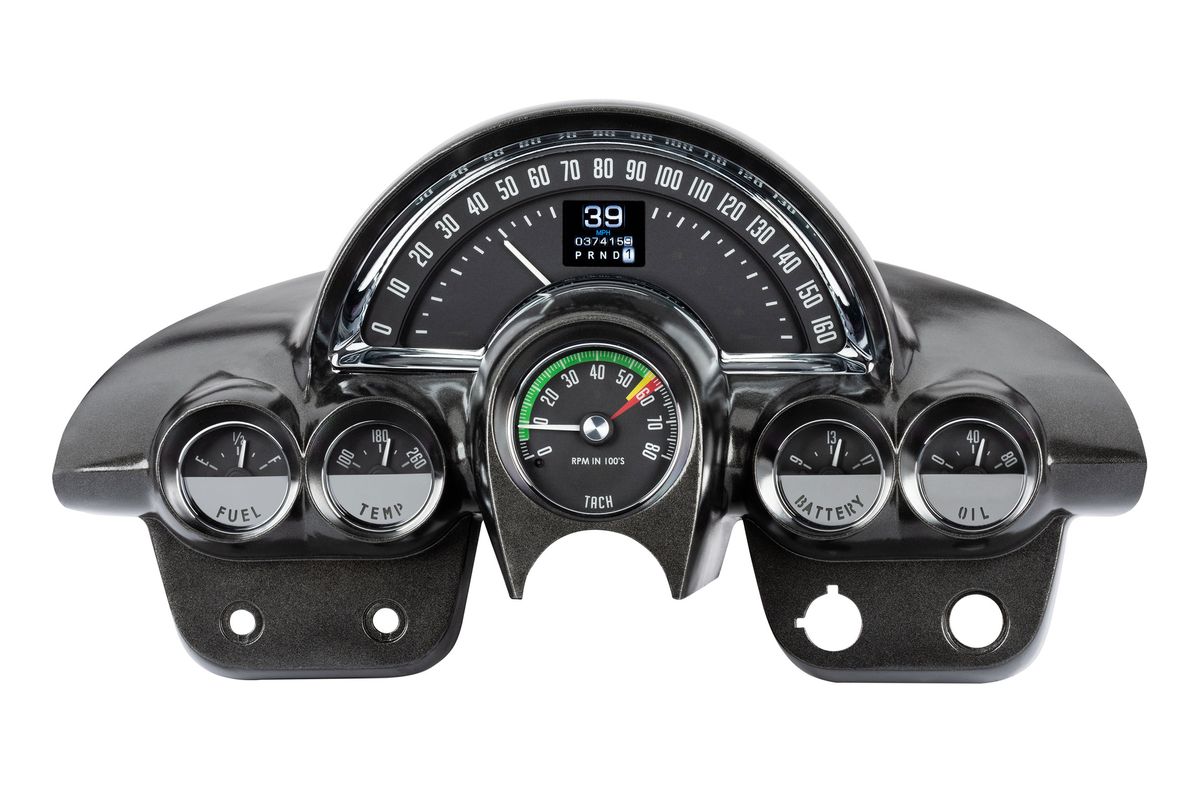

  • Are You Packing Your 1958-62 Corvette Full Of Late Model Tech, But Love The Look Of The Stock Interior? Maybe You Want To Retain The Original Feeling But Just Want A Better Instrument System With A Bit More Accuracy And Visibility? Either Way, This Bolt-In System Is Just What You Need! All New From The Chrome Bezels To The Led Backlighting, We Kept All Of The Cool Features Of The OEM Design And Added A Full-Color TFT Message Center, Led Indicators, Precision Stepper Motor Needle Movements And Of Course Efi Integration Capabilities. Requires Stock, Cast-Metal Dash Pods But Includes Chrome Plated Billet Gauge Bezels. The RTX Series Is The Latest From Dakota Digital, Focused On Retaining That Stock Look Without Sacrificing The Late-Model Features You Love. Every Effort Has Been Put Forth To Incorporate OEM Design Elements Regarding The Layout, Face Styling And Indicators. A Casual Glance May Dismiss These As Original Equipment, But Once You Hit The Switch And The Led Backlighting Comes On In Your Favorite Color Scheme, All Doubts Will Be Removed. Starting From Scratch, Cnc Machined Housings Are Filled With Electronics Designed And Built In-House, Helping Dakota Digital Once Again Raise The Bar For Aftermarket Instrumentation. The High-Definition TFT Message Centers Can Be Fully Configured To Display Just About Any Piece Of Information Needed. As You've Come To Expect From Dakota Digital, The RTX Series Utilizes A Central Control Box To Make Installation And Setup As Easy As Possible.
  • Matching Clock Part # is 59127, Sold Seperately.

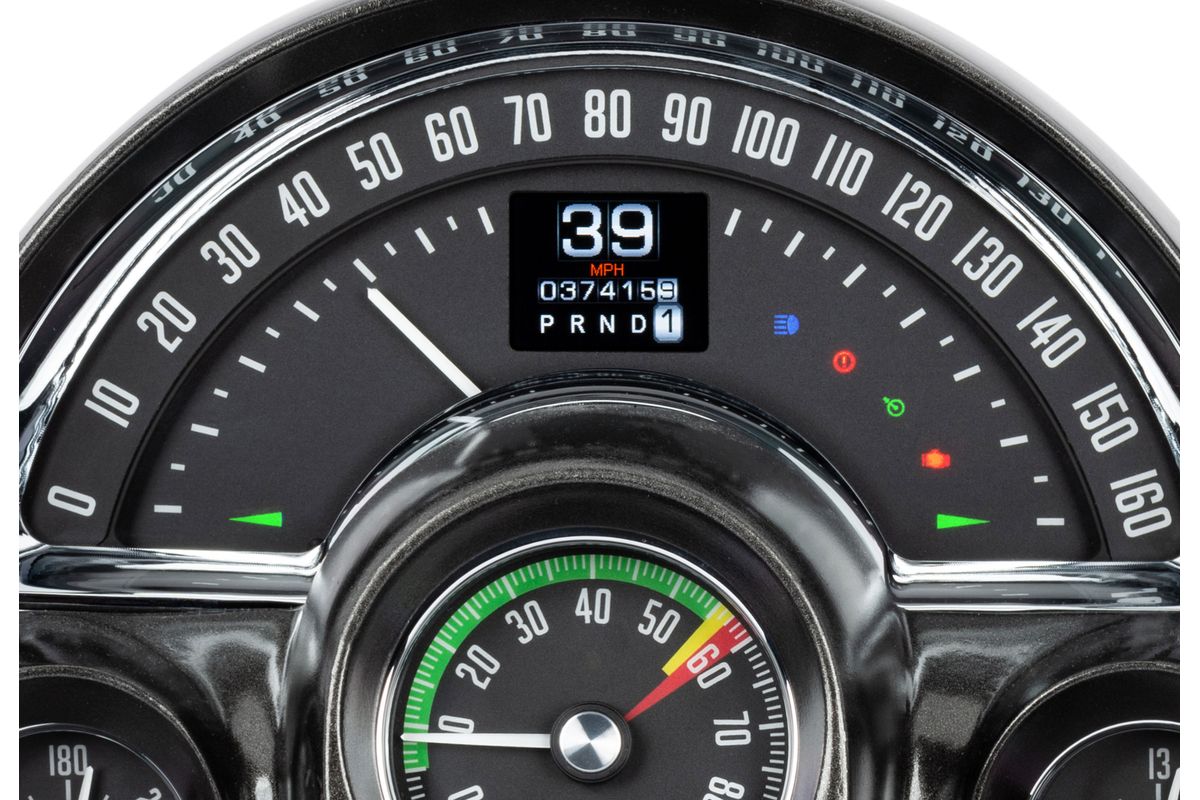

  • Analog Guages Included - 160 MPH Speedo, Split Scale Provides Resolution Of A 120MPH Speedo, With A Top End Range Of 160MPH, 0-8,000 RPM Tachometer, 0-80 Psi Oil Pressure, 100-260F Water Temperature, E, 1/4, 1/2, 3/4, F Fuel Level, 9- 17 Vdc Voltmeter
  • Engineered to Meet or Exceed OEM Specifications
  • MADE IN AMERICA
  • OEM Part Number: RTX-58C-VET-X
  • Associated Years: 1958-1962
  • Notes: Please Note Current Lead Time On New Orders Is 18-22 Weeks. Dash Pod Not Included, Gauges Mount In Existing Dash Structure.
  • Item Quantity Size: 1 ST
  • Shipping Dimensions (LxWxH): 24in x 14in x 6in
  • Weight: 7 pounds
  • Tariff Code: 9025801000
  • Keywords: Instrument Cluster, Instrument Panel
Additional Details

Additional Details

  • Digital Message Center Includes - Standard Displays Including - Odometer (One Time User Settable, Million Mile), Dual (A/B) Trip Meter (0- 9,999.9), Estimated Range/ Miles To Empty, Performance Meters Including - 0- 60 MPH Timer, 1/4 And 1/8 Mile Time, 1/4 And 1/8 Mile End Speed (Trap Speed), High Speed Recall, High RPM Recall
  • Built In Indicators Include - Turn Signals (Left/ Right), High Beam, Check Engine, Parking Brake, Cruise Control (On/ On & Engaged When Vehicle Is Equipped), Gear Position (Optional Un0505 Sensor Required), 4 X 4 (When Vehicle Is Equipped), Wait To Start (When Vehicle Is Equipped), Two Auxiliary Input Indicators With User-Programmable Labels, Each Analog Gauge Sweep Contains A Red Led Indicator For Quick Notice Of A Warning Condition (Except Speedo)
  • Lighting Technology - Over 30 User-Selectable Color Options Allow You To Independently Change The Needle Color, Sweep Color And Digital TFT Display Color, Both Daytime And Nighttime Brightness Can Be Easily Controlled Through The HDX Setup Menu, Allowing You To Choose Your Preferred Lighting Intensity Level, Toggled By The Activation Of The Headlight Switch. If On-The-Fly Rotary Type Control Is Desired, The Un0500 Is A Common Accessory To Add This Functionality. 12 Factory Preset Color Themes Or Choose All Of The Color Zones Yourself.
  • All Calibration Settings Are Handled Through Onboard Capacitive Touch Switches Or The Remote Bluetooth App. While Many Calibration Settings Exist, The Speedo And Fuel Level Are Completed In Most Cases (Unless Un0504 Is Used, Negating The Need To Calibrate The Speedo) Through A Few Taps Of The Pushbuttons And A Short Test Drive Of The Vehicle.
  • Shop Retail Corvette Parts & Accessories
  • Shop Wholesale Corvette Parts & Accessories
  • Fits Year: 1958, 1959, 1960, 1961, 1962
  • Fits Generation: C1 Corvette
